Name: Special B SERIES - 1HP SPINDLE 110 V - UNIT ONLY
Brand: i2R CNC LLC
SKU: Machine-i2RCNC-B-23-1HP-V3
Price: 4999.0 USD
Availability: OutOfStock

Special B SERIES - 1HP SPINDLE 110 V - UNIT ONLY

$5,499.00

Tax included.

Size

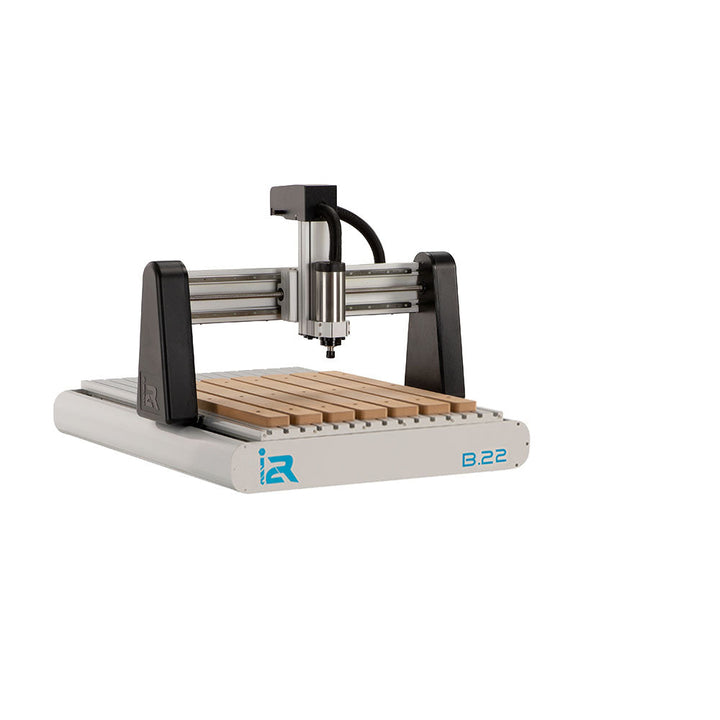

Small 2' x 2'

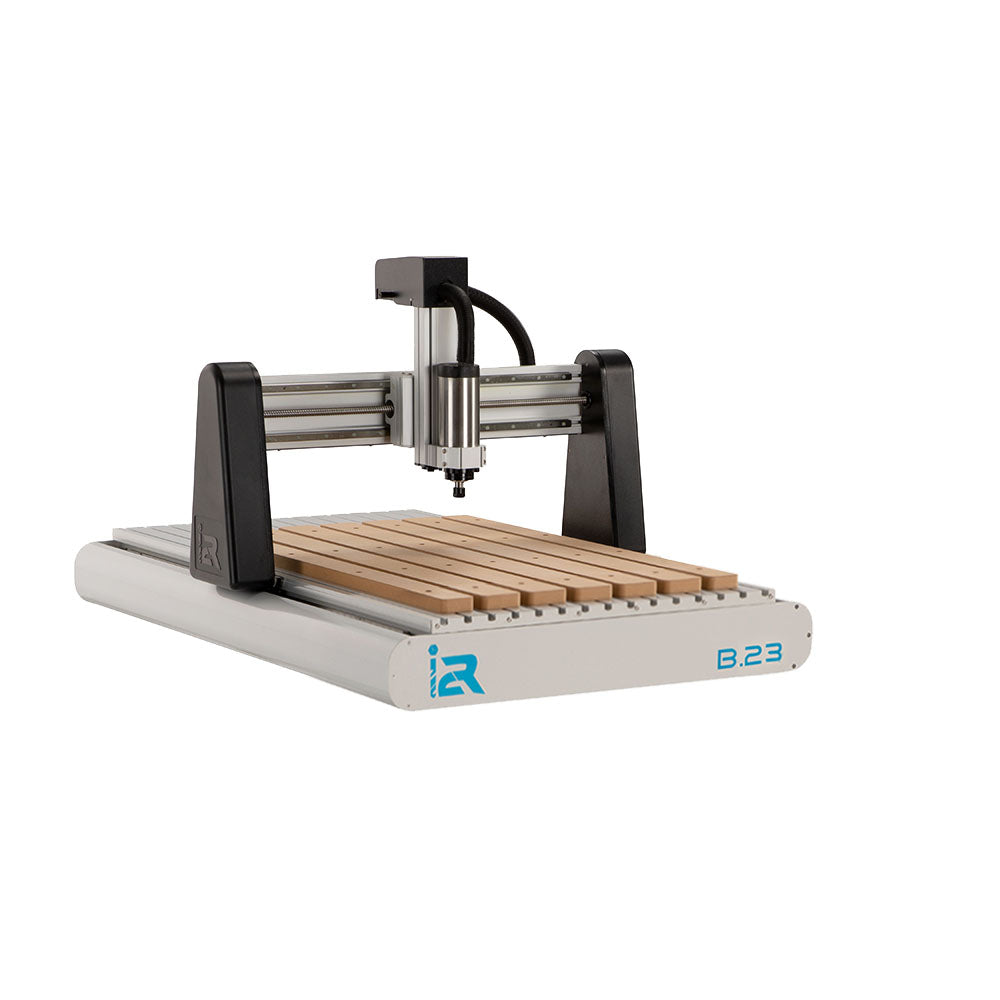

Medium 2' x 3'

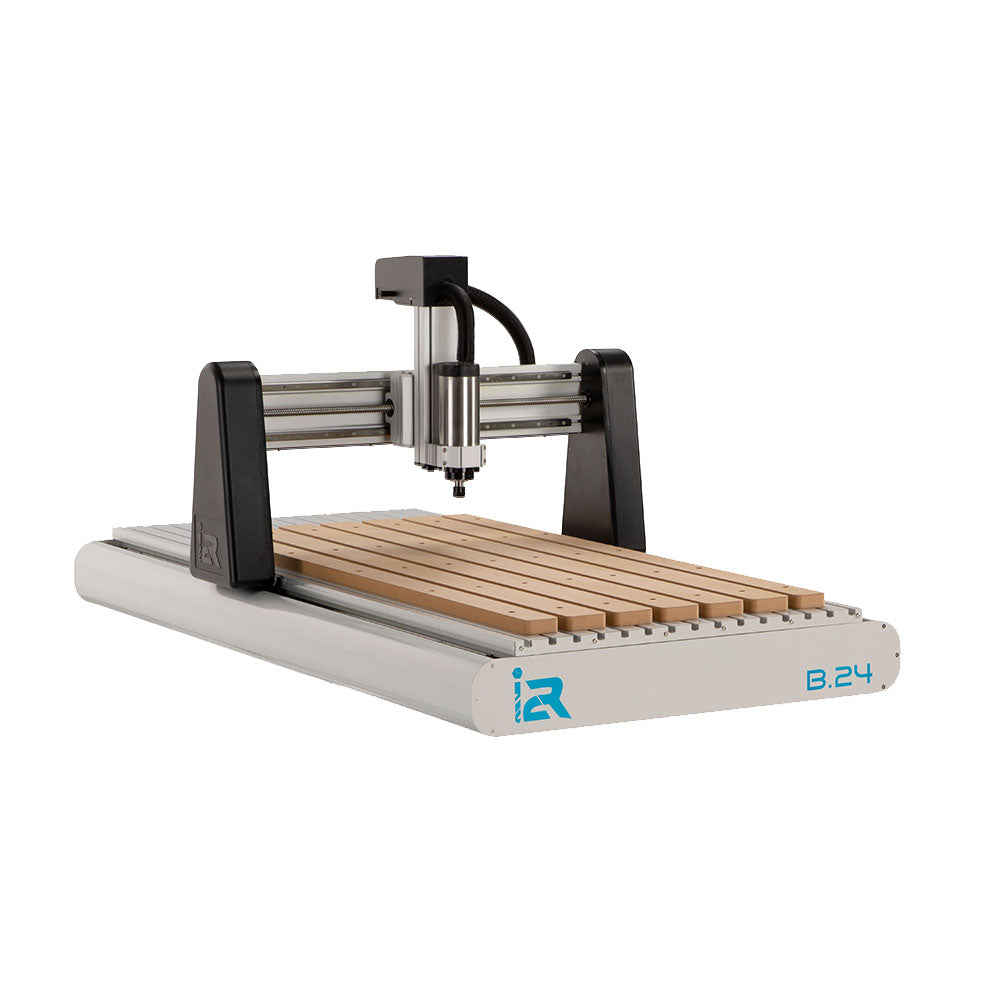

Large 2' x 4'

Low stock - 2 items left
Backordered, shipping soon

SIMPLE SETUP

Fastest Assembly Time in the Market. Start Cutting in less than 1 hour

LIFETIME US CUSTOMER SERVICE

We got you covered

PC CNC CONTROL

NO COMPROMISES

Our i2R CNC router series takes full advantage of the UCCNC software. Touch screen support.
Real time, 3d feedback during cuts. Control every aspect of your CNC machine from your computer.

B Series

3-Axis CNC Table & Gantry
1 HP Air Cooled Spindle (110V)
Integrated MDF Spoil-board
UCCNC Control Software for Windows PC
Control Box & Ethernet Cable
Z-Axis Automatic Touch Off Puck
Wrenches
Collets 1/4″ and 1/8″

*PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED.

Specifications

TRAVEL:

X Axis Travel 48" ( 1220 mm )
Y Axis Travel 24" / 36" / 48"
Z Axis Travel 5.3"(135mm)
C Axis Travel 360 Degree

SPINDLE:

Spindle Speed : 0~24000rpm
1HP Air Cooled
2HP Air Cooled
ER16

MAXIMUM FEED RATE:

150 IPM (3810mm/min)

POWER REQUIRED:

1HP 115V, 50-60 Hz, 13A 1-Phase
2HP 220V, 50-60 Hz, 13A 1-Phase
Controller : UCCNC UCCNC Control Software
(PC REQUIRED)

MACHINE SPECIFICATIONS:

Machine Dimensions

22 =38"L x 356"W x 28"
23 =50"L x 35"W x 28"
24 =62"L x 35"W x 28"
Shipping Dimensions
22 =40"L x 38"W x 33"
22 =55"L x 38"W x 33"
22 =65"L x 38"W x 33"

Machine Weight
A22 : 176lbs
A23 : 209lbs
A24 : 242lbs

LINEAR MOTION COMPONENTS:

HIWIN Profiled linear rail system size
Precision BallScrew X/Y/Z

MACHINE CONSTRUCTION:

Working Table High rigidity Aluminum Extrusion
Gantry Bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum billet machined
Gantry Supports: FEA designed webbed upstand construction

RESOLUTIONS & ACCURACY:

Positional Accuracy +/- 0.003" (0.1mm)

CONTROLLER:

High voltage stepper controller system with full UCCNC control.

ACCESSORIES (INCLUDED):

Tool Touch Off
MDF Spoilboard
Wrenches
Ethernet Cable

ACCESSORIES (OPTIONAL):

AVAILABLE EXPANSION PORTS:

Compatible with air solenoid for coolant
Compatible with fixed touch off system
Compatible with OPT laser system
