SIMPLE SETUP
Fastest Assembly Time in the Market. Start Cutting in less than 1 hour

LIFETIME US CUSTOMER SERVICE
We got you covered
PC CNC CONTROL
NO COMPROMISES
Our i2R CNC router series takes full advantage of the UCCNC software. Touch screen support.
Real time, 3d feedback during cuts. Control every aspect of your CNC machine from your computer.

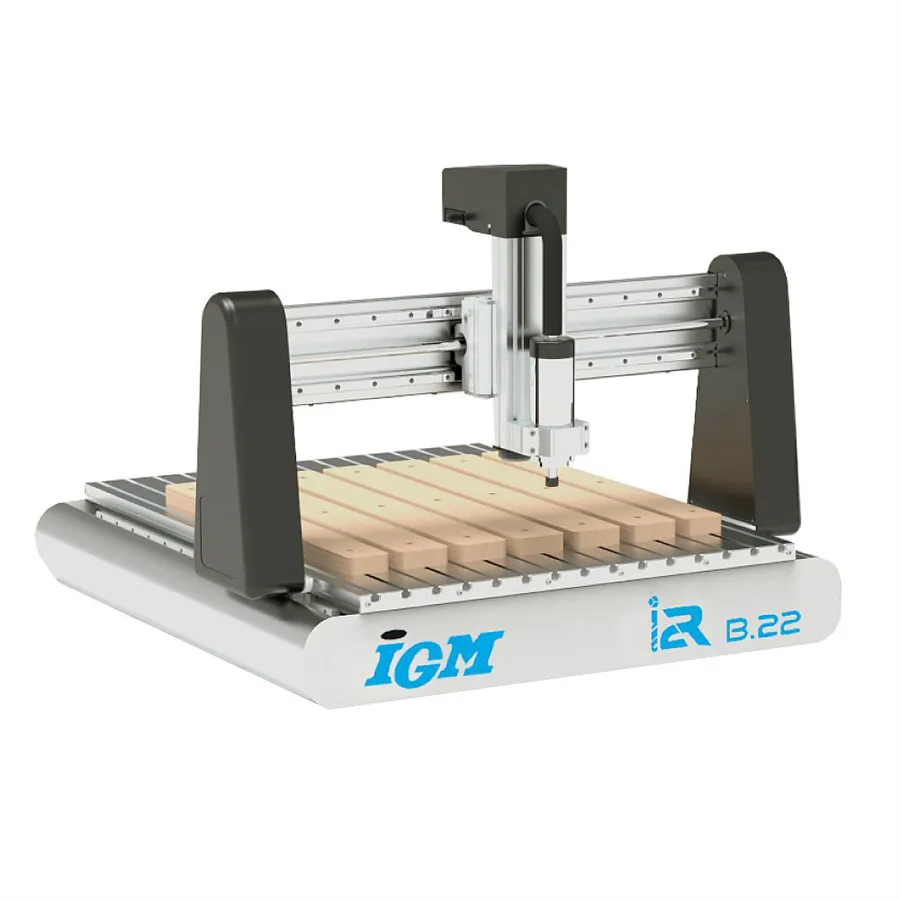

B Series
*PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED. |
Specifications
TRAVEL:
- X Axis Travel 48" ( 1220 mm )
- Y Axis Travel 24" / 36" / 48"
- Z Axis Travel 5.3"(135mm)
- C Axis Travel 360 Degree
SPINDLE:
- Spindle Speed : 0~24000rpm
- 1HP Air Cooled
- 2HP Air Cooled
- ER16
MAXIMUM FEED RATE:
- 150 IPM (3810mm/min)
POWER REQUIRED:
- 1HP 115V, 50-60 Hz, 13A 1-Phase
- 2HP 220V, 50-60 Hz, 13A 1-Phase
- Controller : UCCNC UCCNC Control Software
(PC REQUIRED)
MACHINE SPECIFICATIONS:
- Machine Dimensions
- 22 =38"L x 356"W x 28"
- 23 =50"L x 35"W x 28"
- 24 =62"L x 35"W x 28"
-
Shipping Dimensions
- 22 =40"L x 38"W x 33"
- 22 =55"L x 38"W x 33"
- 22 =65"L x 38"W x 33"
- Machine Weight
- A22 : 176lbs
- A23 : 209lbs
- A24 : 242lbs
LINEAR MOTION COMPONENTS:
- HIWIN Profiled linear rail system size
- Precision BallScrew X/Y/Z
MACHINE CONSTRUCTION:
- Working Table High rigidity Aluminum Extrusion
- Gantry Bridge High rigidity Aluminum Extrusion
- Gantry Supports Aluminum billet machined
- Gantry Supports: FEA designed webbed upstand construction
RESOLUTIONS & ACCURACY:
- Positional Accuracy +/- 0.003" (0.1mm)
CONTROLLER:
- High voltage stepper controller system with full UCCNC control.
ACCESSORIES (INCLUDED):
- Tool Touch Off
- MDF Spoilboard
- Wrenches
- Ethernet Cable
ACCESSORIES (OPTIONAL):
AVAILABLE EXPANSION PORTS:
- Compatible with air solenoid for coolant
- Compatible with fixed touch off system
- Compatible with OPT laser system
