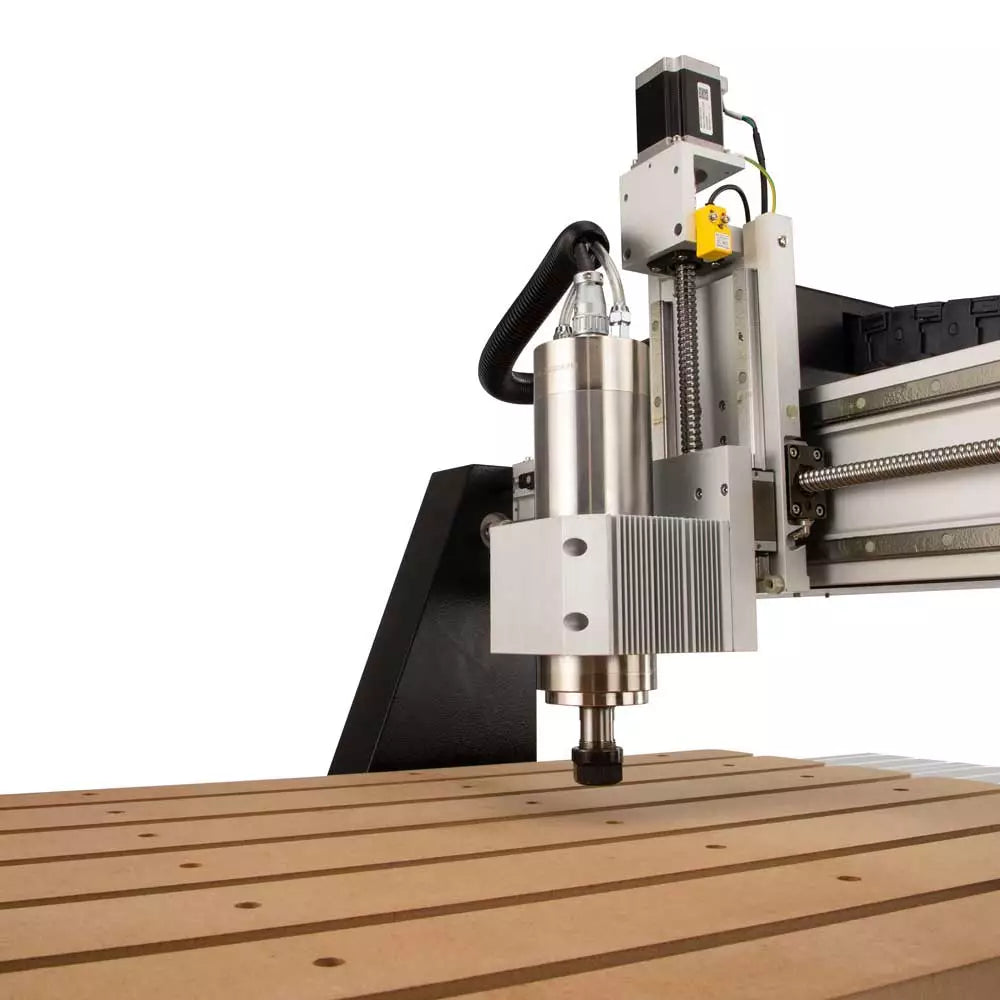

A SERIES -  3HP SPINDLE - UNIT ONLY
A SERIES -  3HP SPINDLE - UNIT ONLY
A SERIES -  3HP SPINDLE - UNIT ONLY
A SERIES -  3HP SPINDLE - UNIT ONLY

A SERIES - 3HP SPINDLE - UNIT ONLY

Sale price$7,499.00
/
Tax included.

Size
  • Low stock - 1 item left
  • Backordered, shipping soon

SIMPLE SETUP

Fastest Assembly Time in the Market. Start Cutting in less than 1 hour

LIFETIME US CUSTOMER SERVICE

We got you covered

PC CNC CONTROL

NO COMPROMISES

Our i2R CNC router series takes full advantage of the UCCNC software. Touch screen support.
Real time, 3d feedback during cuts. Control every aspect of your CNC machine from your computer.

i2R A Series

Every Advanced Pack comes fully equipped and ready to go. Just install the UCCNC software package on your PC or laptop,* plug in and release your creativity.

  • 3-Axis CNC Table & Gantry
  • 3HP Liquid Cooled Spindle (210V)
  • Integrated MDF Spoilboard
  • UCCNC Control Software for Windows PC
  • Control Box & Ethernet Cable
  • Z-Axis Automatic Touch Off Puck
  • Wrenches
  • Collets 1/4″ and 1/2"

*PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED.

DELIVERY LEAD TIME 45-60 DAYS


Specifications

TRAVEL:

  • X Axis Travel 48" ( 1220 mm )
  • Y Axis Travel 24" / 36" / 48"
  • Z Axis Travel 5.9"(150mm)
  • C Axis Travel 360 Degree

SPINDLE:

  • Spindle Speed : 0~24000rpm
  • 2.2KW (3HP) Water-Cooled Spindle
  • Included Collets ER20

MAXIMUM FEED RATE:

  • 300 IPM (7620mm/min)

POWER REQUIRED:

  • 220V, 50~60Hz, 13A, 1-Phase
  • Controller : UCCNC UCCNC Control Software
    (PC REQUIRED)

MACHINE SPECIFICATIONS:

  • Machine Dimensions
    • A22 =39.17"L x 37.36"W x 30.27"
    • A23 =51.18"L x 37.36"W x 30.27"
    • A24 =62.99"L x 37.36"W x 30.27"
    • Shipping Dimensions
    • A22 =42"L x 39"W x 33"
    • A22 =53"L x 39"W x 33"
    • A22 =65"L x 39"W x 33"
  • Machine Weight
  • A22 : 320lbs
  • A23 : 360lbs
  • A24 : 405lbs

LINEAR MOTION COMPONENTS:

  • HIWIN Profiled linear rail system size – a massive 20mm in X, Y, Z | 4 full carriages per axis
  • Precision BallScrew X/Y/Z

MACHINE CONSTRUCTION:

  • Working Table High rigidity Aluminum Extrusion
  • Gantry Bridge High rigidity Aluminum Extrusion
  • Gantry Supports Aluminum billet machined
  • Gantry Supports: FEA designed webbed upstand construction

RESOLUTIONS & ACCURACY:

  • Positional Accuracy +/- 0.003" (0.1mm)

CONTROLLER:

  • High voltage stepper controller system with full UCCNC control.

ACCESSORIES (INCLUDED):

  • Tool Touch Off
  • MDF Spoilboard
  • Wrenches
  • Ethernet Cable

ACCESSORIES (OPTIONAL):

AVAILABLE EXPANSION PORTS:

  • Compatible with air solenoid for coolant
  • Compatible with fixed touch off system
  • Compatible with OPT laser system
