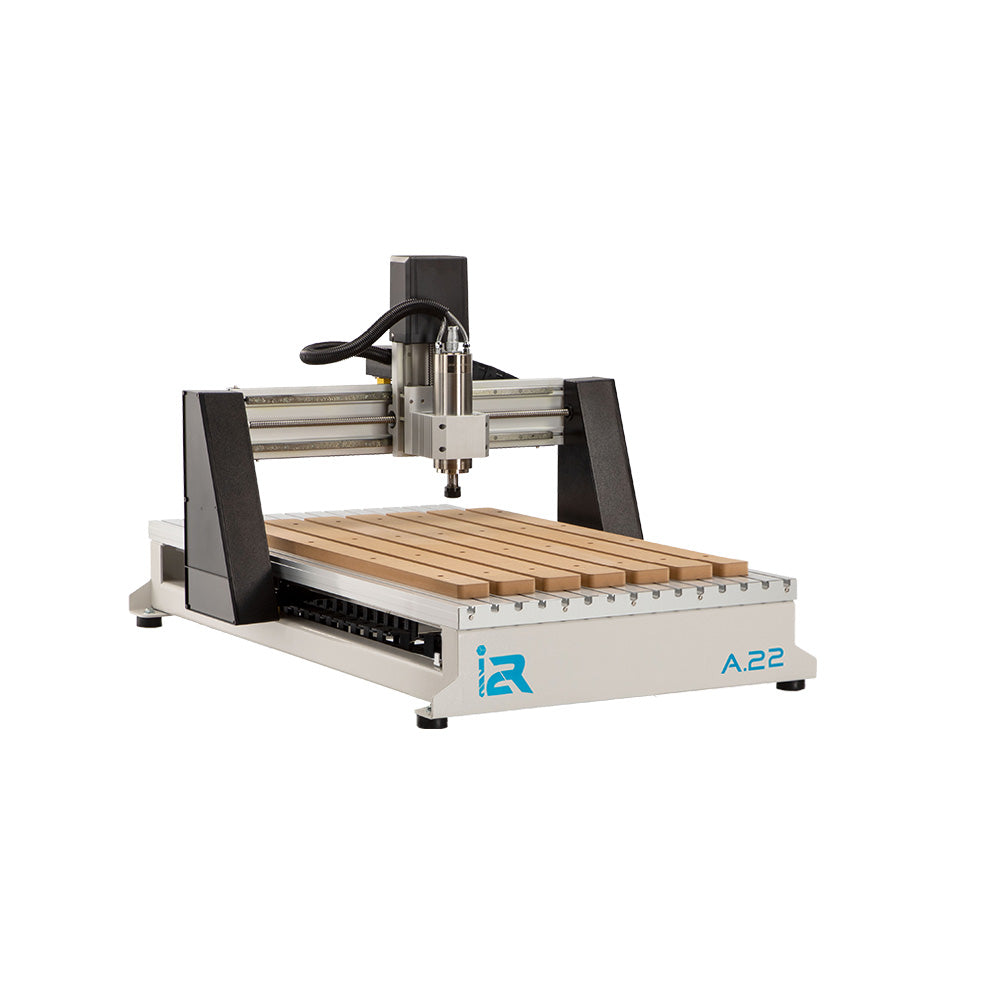

A SERIES CNC - AR22 - 3HP SPINDLE - SMALL 2' X 2' - 220 V - UNIT ONLY
FEATURES
- 3-Axis CNC Table & Gantry
- Small 24” x 24” work Envelope
- 3 HP Air-Cooled Spindle (220V)
- Fully ball screw linear guides on all axis
BENEFITS
- Fastest Assembly Time
- 1 on 1 Onboarding / Training Call
- Lifetime Customer Service
- Remote Login Support
A SERIES CNC - AR22 - 3HP SPINDLE - SMALL 2' X 2' - 220 V - UNIT ONLY
FEATURES
- 3-Axis CNC Table & Gantry
- Small 24” x 24” work Envelope
- 3HP Air-Cooled Spindle (210V)
- Fully ball screw linear guides on all axis
BENEFITS
- Fastest Assembly Time
- 1 on 1 Onboarding / Training Call
- Lifetime Customer Service
- Remote Login Support
WHAT'S INCLUDED
SIMPLE SETUPFastest Assembly Time in the Market. Start Cutting in less than 1 hour |
LIFETIME US CUSTOMER SERVICEWe got you covered |
WHAT'S INCLUDED
SIMPLE SETUP
Fastest Assembly Time in the Market. Start Cutting in less than 1 hour
LIFETIME US CUSTOMER SERVICE
We got you covered
PC CNC CONTROL
NO COMPROMISES
Our i2R CNC router series takes full advantage of the UCCNC software. Touch screen support.
Real time, 3d feedback during cuts. Control every aspect of your CNC machine from your computer.
I2RCNC A22 (2X2) ALL YOU NEED TO SET UP SHOP...)Every Advanced Pack comes fully equipped and ready to go. Just install the UCCNC software package on your PC or laptop,* plug in and release your creativity.
*PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED. |
 WORK AREA:i2R A22 = 24″ x 24″ FOOT PRINT:i2R A22 = 39″L x 37″W x 30″H |
I2RCNC A22 (2X2) ALL YOU NEED TO SET UP SHOP...
Every Advanced Pack comes fully equipped and ready to go. Just install the UCCNC software package on your PC or laptop,* plug in and release your creativity.
- 3-Axis CNC Table & Gantry
- 3HP Air Cooled Spindle (210V)
- Integrated MDF Spoilboard
- UCCNC Control Software for Windows PC
- Control Box & Ethernet Cable
- Z-Axis Automatic Touch Off Puck
- Wrenches
- Collets 1/4″ and 1/8″
*PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED.
WORK AREA:
i2R A22 = 24″ x 24″
FOOT PRINT:
i2R A22 = 39″L x 37″W x 30″H
I2RCNC A22 (2X2)
TECHNICAL SPECIFICATIONS
X axis:
I2RCNC A22 (2X2)
- 610mm (24″)
Y AXIS TRAVEL:
- A22 = 24.1″ (610mm)
Z AXIS TRAVEL:
- 5.9″ (150mm)
C AXIS TRAVEL:
- 360deg
TABLE WORK AREA:
- A22 = 28.4″ x 39″
TABLE WORK AREA:
- A22 = 28.4″ x 39″

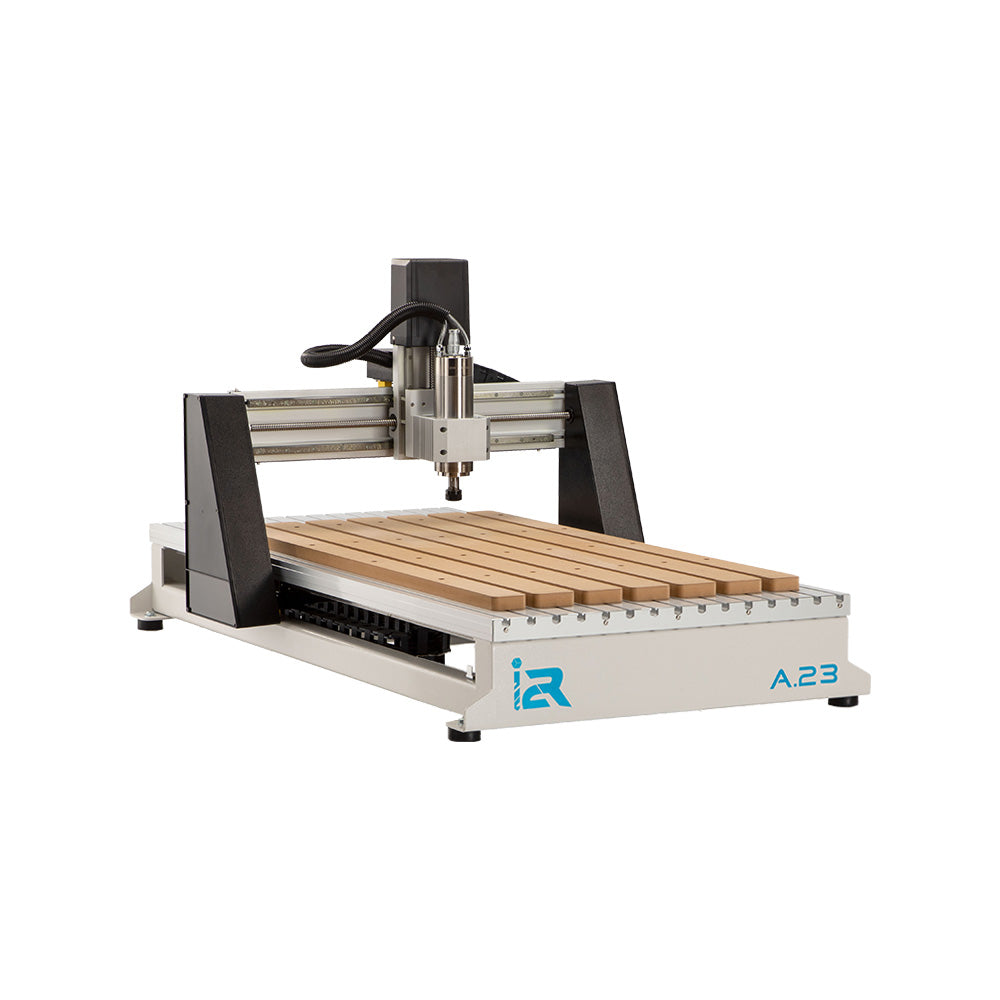

- A23 = 28.4″ x 51″

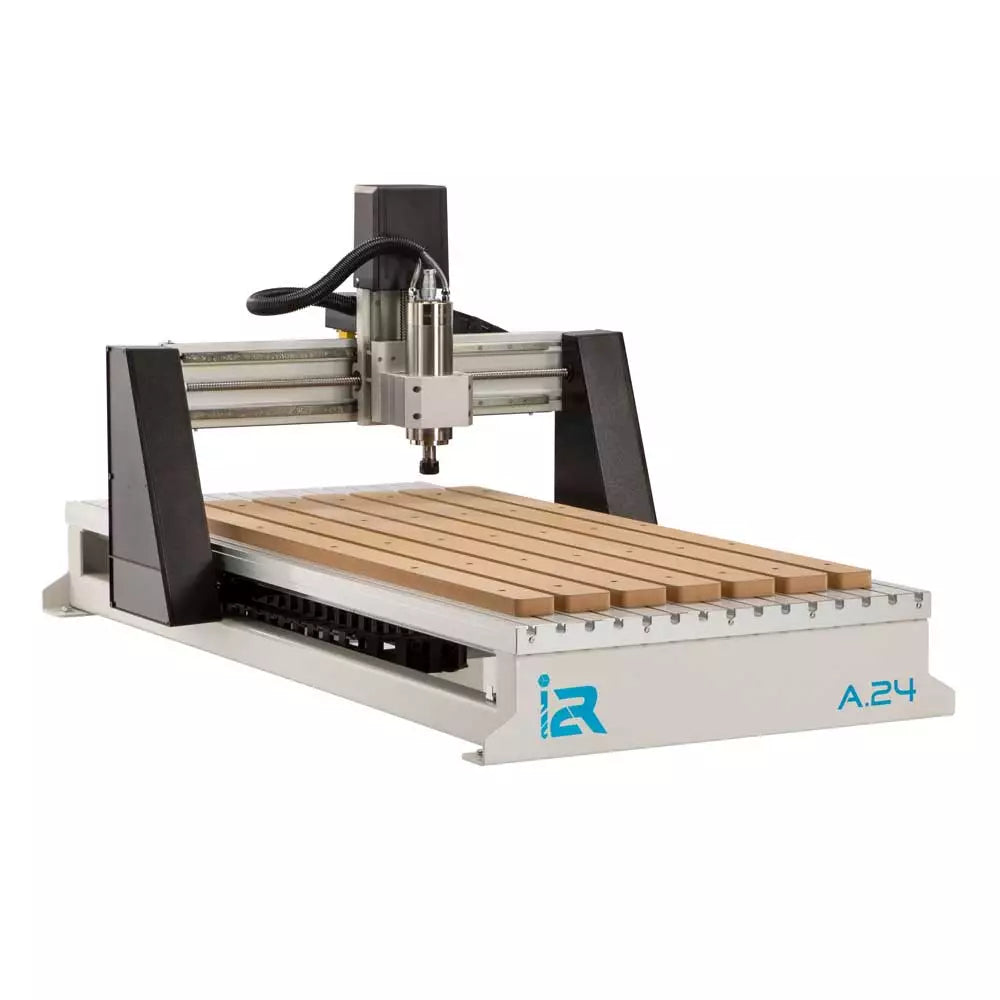

- A24 = 28.4″ x 63″
SPINDLE CONFIGURATION:
- ER20
SPINDLE CONFIGURATION:
- ER20
INCLUDED COLLETS
- ER20

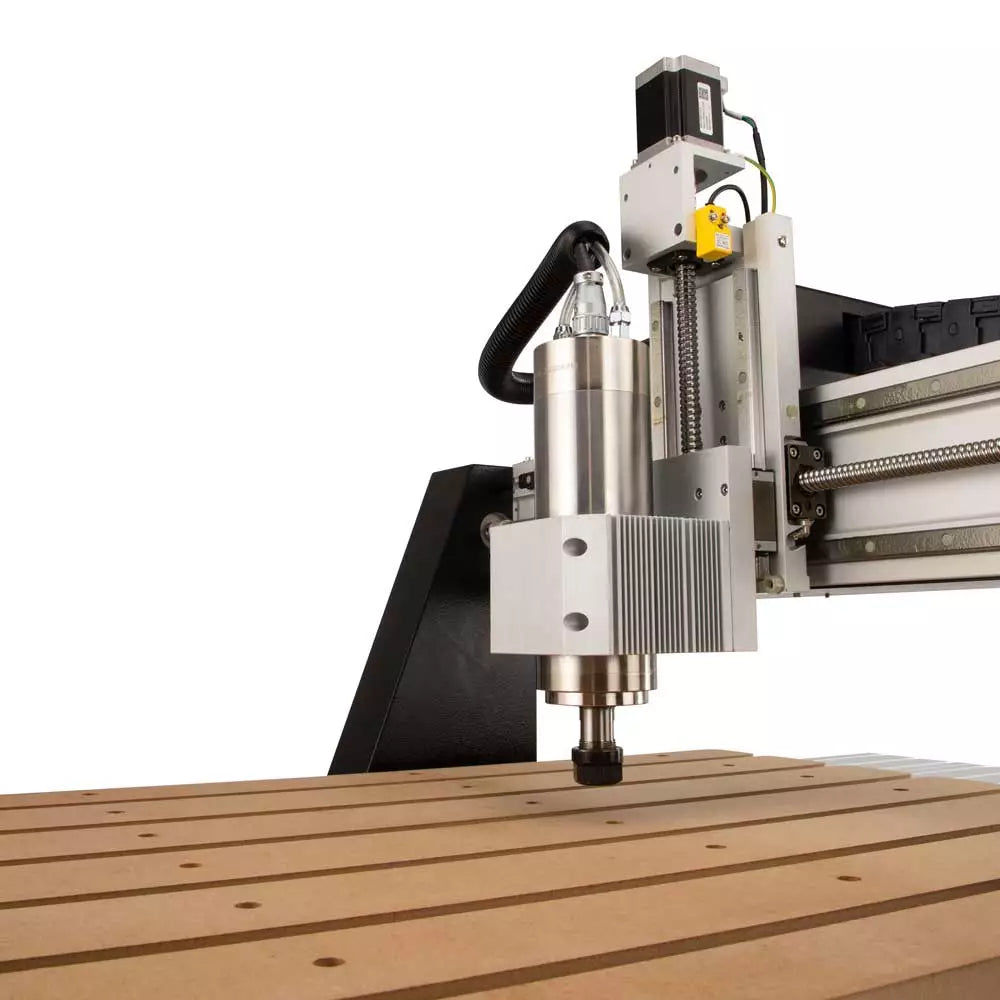

ELECTRO SPINDLE
- 2.2KW
SPINDLE SPEED
- 0~24000 RPM
RAPID SHUTTLE SPEED
- 300 IPM (5 MPM)
PRECISION LINEAR GUIDEWAY
- X/Y/Z
PRECISION BALL SCREW
- X/Y/Z
BALL SCREW DIAMETER
- 16mm
POSITIONAL ACCURACY
- +/- .001″ (0.02mm)
POWER REQUIREMENTS
- 220 V,50~60 Hz, 10A, 1-Phase
WORKING TABLE
- High rigidity Aluminum Extrusion
GANTRY BRIDGE
- High rigidity Aluminum Extrusion
GANTRY SUPPORTS
- Aluminum alloy gravity cast
GANTRY CLEARANCE
- 6.5″ (165.1mm)
GANTRY CLEARANCE
- Above MDF Spoilboard 5.5″ (139.7mm)
MACHINE BASE
- All Welded Steel
FRAME MACHINE DIMENSIONS
- AR4 = 39.17″L x 37.36″W x 30.27″H
- AR6 = 51.18″L x 37.36″W x 30.27″H
- AR8 = 62.99″L x 37.36″W x 30.27″H
SPINDLE:
- Spindle Power: 1hp (1.5 W)
- Spindle Type: Electro Spindle
- Spindle Speed: 0-24,000 RPM
SHIPPING DIMENSIONS:
- AR4 = 42″L x 39″W x 33″H
- AR6 = 53″L x 39″W x 33″H
- AR8 = 65″L x 39″W x 33″H
SHIPPING WEIGHT:
- AR4 = AR4 = 320 lbs
- AR6 = AR6 = 360 lbs
- AR8 = AR8 = 405 lbs
TOOL TOUCH-OFF DEVICE:
- Included
ONBOARD COOLING SYSTEM:
- Included
CONTROLLER:
- UCCNC PC Required
