WHAT'S INCLUDED
SIMPLE SETUP
Fully Assembled! Start Cutting Immediately!
LIFETIME USA CUSTOMER SERVICE
We got you covered
PC CNC CONTROL
NO COMPROMISES
i2R CNC series takes full advantage of the UCCNC software. Touch screen support.
Real time, 3D feedback during cuts. Control every aspect of your CNC machine from your computer.

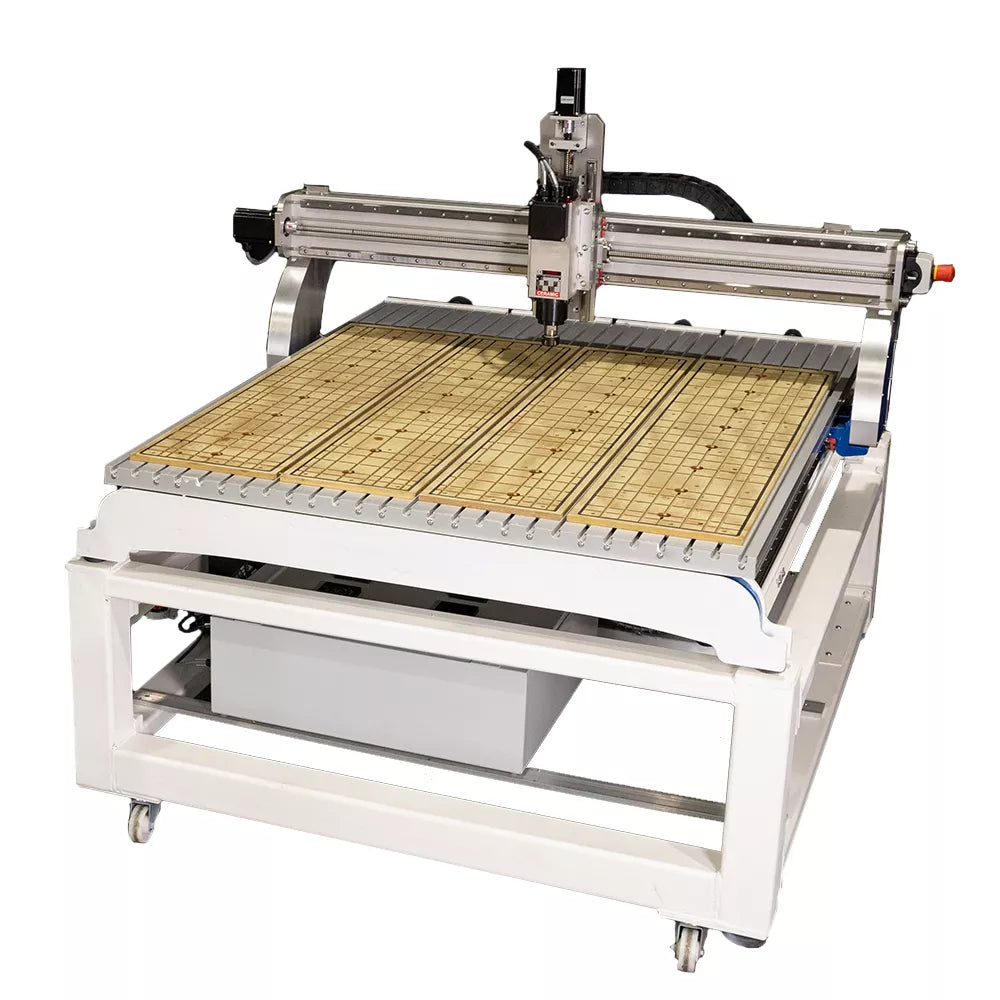

5.0 Robotics Model 16 (4X4)This line is designed for professional, medium sized business users. The Executive system represent our most advanced development working with 5.0 Robotics and the UCCNC controller.*PC / laptop stand sold separately, PC not included. All Executive 16 systems ship directly to your shop for $999. Residential & lift-gate delivery services included.
*PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED. |
TECHNICAL SPECIFICATIONS
TRAVEL:
I2RCNC E16 (4X4)
- X axis: 1220mm (48″) Nema 34 NM High Torque Steppers
- Y axis: 1220mm (48″) Nema 34 NM High Torque Steppers
- Z axis: 200mm (7.87″) Nema 23 2.5NM high torque steppers
TABLE WORK AREA::
- i2R Exec 16: (48″ x 48″)

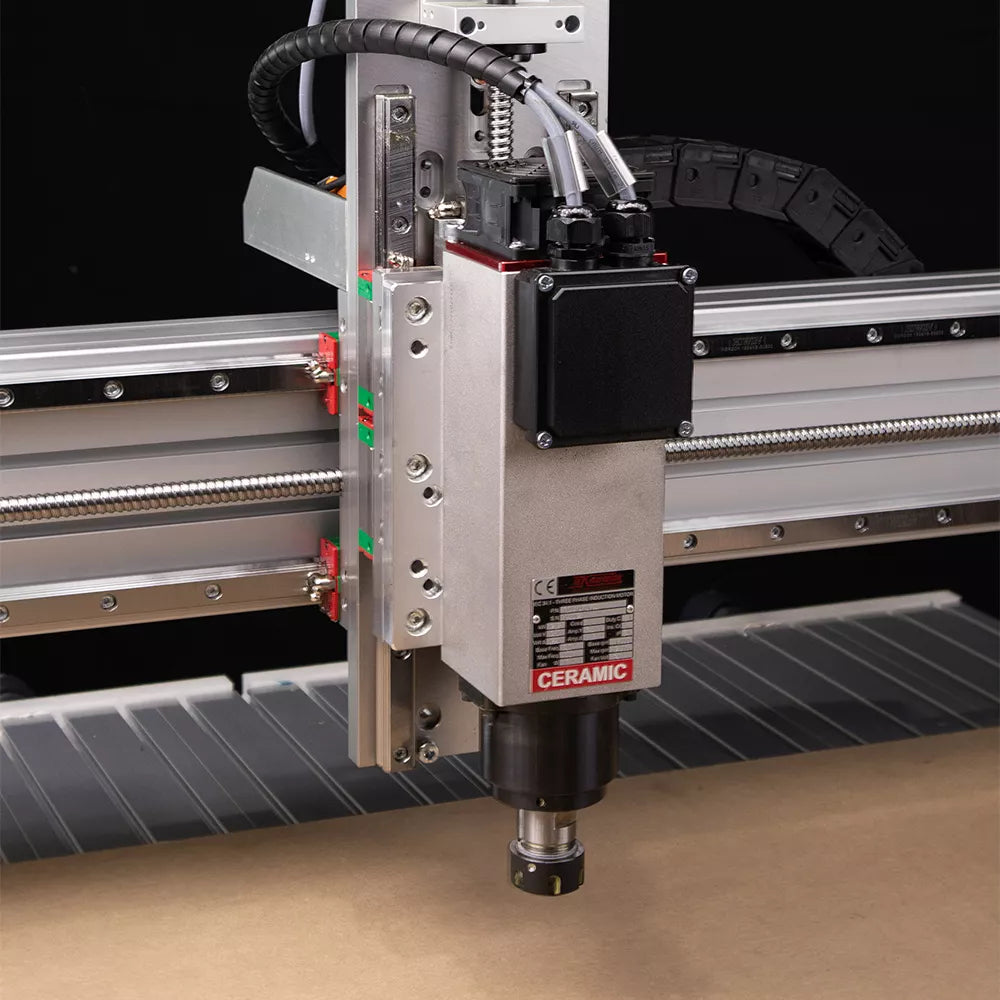

SPINDLE:
- Spindle Speed : 0~24000rpm
- Standard: 2.2kW ER20 water cooled spindle as standard
- Optional: 2.2kW ER25 collet Italian Tekno air cooled spindle with ER25 collet system | please contact us
MAXIMUM FEED RATE:
- X-, Y-, and Z-Axis: 400 in./min - 1,081 in./min Stepper/Servo
We will provide test report upon completion ( Machine is tested until stall)
POWER REQUIRED:
- 230v 1phase - main machine will run off a 13A single phase supply.
- Vacuum pump supply will be separate – see vacuum.
MACHINE SPECIFICATIONS:
i2R-Exec 16
- Floor space requirement:
- Machine Weight: 1800 lbs
- Gantry Clearance (standard): 200mm clearance – & repositionable Z height
LINEAR MOTION COMPONENTS:
- HIWIN Profiled linear rail system size – a massive 20mm in X, Y, Z | 4 full carriages per axis
- Precision BallScrew X/Y/Z
- 50μm pitch error over 300mm and typical repeatability of 20um.
- BallScrew Diameter 16mm NOTE - 400W AC Servo Models will run 20mm ballscrews on X and Y Axes.
Exec 16: Two 16mm Ballscrew on Y Axis & One 16mm Ballscrew on X and Z

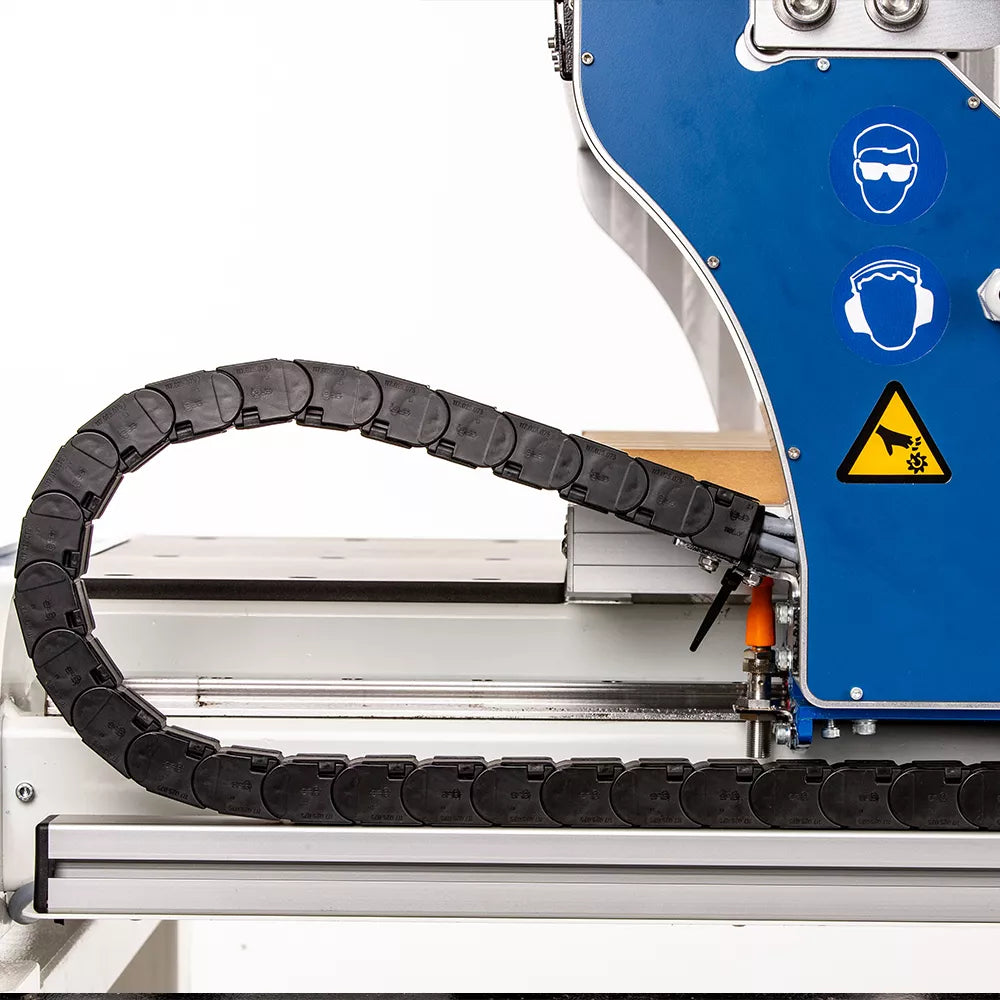

MACHINE CONSTRUCTION:
- Machine Base: All Welded Steel Frame
- All steel frame - 10mm steel laser cut - 80 x 40 steel box section with 5mm wall thickness. Precision machined on aerospace machining center before rail and ballscrew end condition assembly
- Gantry Bridge: 160x80mm heavy duty Maytech Alloy Bridge
- Gantry Supports: FEA designed webbed upstand construction
RESOLUTIONS & ACCURACY:
- Positional Accuracy +/- 0.02mm (.0007”)
- Repeatability <0.02mm
-
We perform a geometric accuracy test to each machine we produce
All of our measurements are made with Mitutoyo calibrated instruments
CONTROLLER:
- High voltage stepper controller system with full UCCNC control.
ACCESSORIES (INCLUDED):
- Tool Touch Off
- MDF Spoilboard
- Wrenches
- Ethernet Cable
ACCESSORIES (OPTIONAL):
- VAC Table
- VAC Pump As standard 1 x 2.2kW side channel blower
- VAC Table upgrade to factory installed grid square suction table with access to the T-slots maintained every 3-400mms) | contact us
- 2.2kW ER25 collet Tekno air cooled spindle with ER25 collet system | contact us
AVAILABLE EXPANSION PORTS:
- Compatible with air solenoid for coolant
- Compatible with fixed touch off system
- Compatible with OPT laser system
